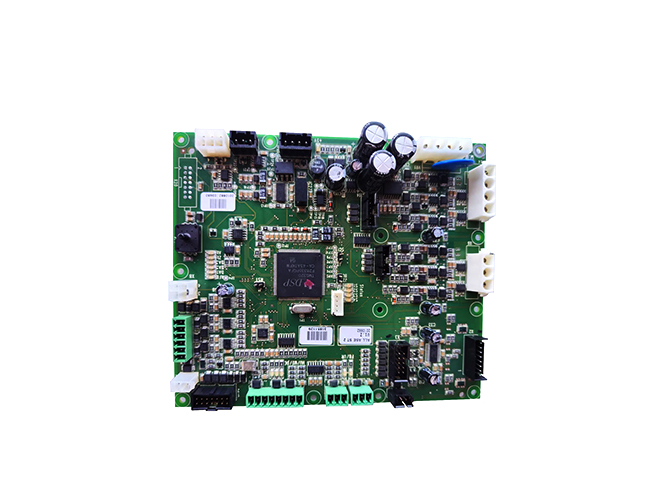

Solar Energy PCBs (Printed Circuit Boards) are specialized circuit boards designed to support the efficient operation of solar power systems, including photovoltaic (PV) panels, solar inverters, and solar charge controllers. These PCBs serve as the electrical backbone of solar systems, facilitating the transmission of DC power generated by PV cells to inverters (which convert DC to AC for grid use or direct consumption) and ensuring reliable communication between system components (such as sensors for monitoring panel temperature and sunlight intensity). Given the harsh operating environments of solar systems—often exposed to extreme temperatures (ranging from -40°C to 85°C), high humidity, UV radiation, and mechanical stress—Solar Energy PCBs are engineered for exceptional durability, thermal stability, and corrosion resistance.

The design of Solar Energy PCBs prioritizes thermal management, as excessive heat can degrade component performance and shorten lifespan. To address this, they use high-thermal-conductivity substrates such as metal-core PCBs (MCPCBs) or ceramic-filled FR-4 (Flame Retardant 4) materials. MCPCBs, which feature a metal base layer (typically aluminum or copper), efficiently dissipate heat from power components like diodes and inverters, preventing overheating. For example, in solar inverters, MCPCBs reduce the operating temperature of IGBTs (Insulated Gate Bipolar Transistors) by up to 30°C compared to traditional FR-4 PCBs, significantly improving reliability. Additionally, Solar Energy PCBs often incorporate thick copper traces (2oz-4oz copper weight) to handle high current loads—PV panels can generate currents of 5A-10A per string, and thick copper ensures minimal power loss and resistance heating.

Material selection is critical for withstanding outdoor conditions. The solder mask (the protective layer over the PCB) is made from UV-resistant materials such as epoxy or polyimide, which prevent degradation from prolonged sunlight exposure. The substrate itself may be coated with anti-corrosion finishes (e.g., immersion silver or tin) to resist moisture and saltwater—essential for solar systems installed in coastal areas. For PV panel junction boxes (where multiple panels are connected), PCBs are designed with waterproof enclosures and sealed edges to prevent water ingress, which can cause short circuits.

Solar Energy PCBs also integrate features for system monitoring and safety. Many include embedded sensors (e.g., temperature sensors, current sensors) connected to a microcontroller, enabling real-time monitoring of power output and component health. This data is transmitted to a central management system, allowing for predictive maintenance and quick troubleshooting. Safety features such as overcurrent protection (via fuses or circuit breakers) and reverse polarity protection (via diodes) are also integrated into the PCB design, preventing damage from electrical faults or incorrect wiring.

In applications, Solar Energy PCBs are used across the solar power ecosystem. In PV panels, they connect individual solar cells into strings, ensuring efficient current collection. In solar inverters, they support the complex circuitry needed for DC-AC conversion, including power electronics and control systems. In solar charge controllers (used in off-grid systems), they regulate the charging of batteries, preventing overcharging and extending battery life. As the global demand for renewable energy grows, Solar Energy PCBs are evolving to support higher efficiency systems—for example, PCBs for bifacial PV panels (which capture sunlight from both sides) feature symmetric designs to handle power from both panel surfaces, while PCBs for utility-scale solar farms are optimized for high-density component placement to reduce size and cost.

Manufacturing standards for Solar Energy PCBs are strict, adhering to IPC (Association Connecting Electronics Industries) standards such as IPC-6012 (for PCB qualification) and IEC 61215 (for PV module performance). Testing includes thermal cycling (to simulate temperature fluctuations), humidity testing (to verify moisture resistance), and current carrying capacity tests (to ensure the PCB can handle peak currents). With advancements in solar technology—such as the shift to higher-efficiency PERC (Passivated Emitter and Rear Contact) cells and 5G-enabled smart solar systems—Solar Energy PCBs will continue to play a vital role in enabling reliable, efficient solar power generation.
