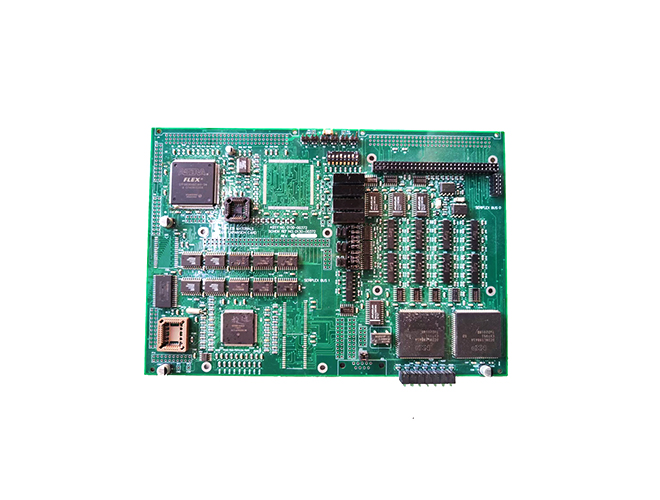

The selective wave soldering process is a specialized technique used in PCB manufacturing that offers several advantages over traditional wave soldering methods, especially when dealing with complex PCBs that have a mix of surface mount devices (SMDs) and through-hole components. This process allows for precise soldering of specific components, reducing the risk of solder bridging, short circuits, and other soldering defects.

　　The selective wave soldering process begins with the preparation of the PCB. The board is first loaded onto a conveyor system, which transports it to the fluxing station. Here, a controlled amount of flux is applied to the areas where soldering is required. Flux plays a crucial role in the soldering process by cleaning the component leads and PCB pads, reducing surface tension, and promoting better wetting of the solder. Different types of fluxes, such as water-soluble, no-clean, or rosin-based fluxes, can be used depending on the specific requirements of the PCB and the subsequent cleaning processes.

　　After fluxing, the PCB moves to the soldering station. In selective wave soldering, instead of immersing the entire PCB in a wave of molten solder as in traditional wave soldering, a selective soldering head is used. This head consists of a small, precisely controlled solder wave that can be positioned to target specific areas of the PCB. The soldering head can be programmed to move in a specific pattern, ensuring that only the desired components are soldered. For example, if a PCB has a combination of SMDs and through-hole components, the selective soldering head can be used to solder the through-hole components while avoiding the SMDs, which may have already been soldered using a different process like reflow soldering.

　　The soldering parameters, such as the temperature of the solder wave, the height of the wave, and the speed of the PCB movement, are carefully adjusted to ensure optimal soldering results. The solder temperature needs to be high enough to melt the solder alloy and create a strong bond between the component leads and the PCB pads, but not so high as to damage the components or the PCB. The height of the solder wave determines the amount of solder that is applied to the joints, and the speed of the PCB movement affects the dwell time of the components in the solder wave.

　　After soldering, the PCB is typically transported to a post-soldering cleaning station. Depending on the type of flux used, different cleaning methods may be employed. Water-soluble fluxes can be cleaned using water-based cleaning solutions, while no-clean fluxes may require minimal or no cleaning. However, in some cases, even no-clean fluxes may need to be cleaned to remove any residues that could potentially affect the long-term reliability of the PCB. The selective wave soldering process offers greater flexibility, precision, and quality control in PCB soldering, making it an essential technique in modern PCB manufacturing, especially for high-mix, low-volume production runs.
