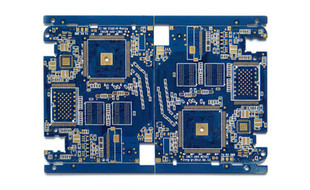

The PCB testing process is a comprehensive series of procedures designed to verify the functionality, reliability, and quality of printed circuit boards (PCBs) before they are integrated into electronic devices. This multi-stage process begins immediately after manufacturing and continues through various stages of assembly, ensuring that any defects—such as short circuits, open circuits, incorrect component placement, or poor solder joints—are identified and rectified early, reducing costly rework and preventing device failures in the field.

One of the initial steps in the PCB testing process is visual inspection, which can be performed manually or using automated optical inspection (AOI) systems. Manual inspection involves trained technicians examining the PCB for obvious defects like solder bridges, missing components, or damaged traces. AOI, on the other hand, uses high-resolution cameras and image processing software to detect subtle flaws, such as misaligned components, insufficient solder, or lifted pads, with greater speed and accuracy than manual methods. This is particularly valuable for high-volume production lines where consistency and efficiency are critical.

Following visual inspection, electrical testing is conducted to verify the PCB’s conductive paths. Continuity testing checks for open circuits (breaks in the traces) and short circuits (unintended connections between traces), ensuring that current flows correctly between components. This is often performed using a bed-of-nails fixture, where spring-loaded pins make contact with test points on the PCB, allowing a tester to measure resistance between points. For more complex PCBs, in-circuit testing (ICT) is used, which involves probing individual components to verify their values, orientations, and connections. ICT can detect issues like incorrect resistors, capacitors, or integrated circuits, ensuring that each component functions as specified.

Another important stage is functional testing, which evaluates the PCB’s performance as a complete system. This involves powering the PCB and simulating real-world operating conditions to ensure that it meets the required specifications. For example, a PCB used in a smartphone might undergo functional testing to verify that all communication ports, sensors, and processors work together correctly. Functional testing can uncover issues that electrical testing might miss, such as timing errors, signal integrity problems, or software-hardware incompatibilities.

Environmental testing is also part of the PCB testing process, especially for PCBs used in harsh environments. This includes temperature cycling (exposing the PCB to extreme hot and cold temperatures), humidity testing, and vibration testing to ensure that the PCB can withstand the conditions it will encounter during its lifespan. For example, PCBs used in automotive applications must pass rigorous environmental tests to ensure reliability under engine heat, moisture, and road vibrations.

In addition to these tests, advanced PCBs may undergo specialized testing such as X-ray inspection to check for hidden defects like voids in solder joints under BGA (Ball Grid Array) components, or flying probe testing, which uses robotic probes to test PCBs without the need for custom fixtures, making it ideal for low-volume or prototype PCBs.

 the PCB testing process is a critical quality control measure that ensures PCBs meet the required standards for performance, reliability, and durability. By combining various testing methods, manufacturers can identify and address defects at every stage of production, resulting in high-quality PCBs that form the backbone of modern electronic devices.
