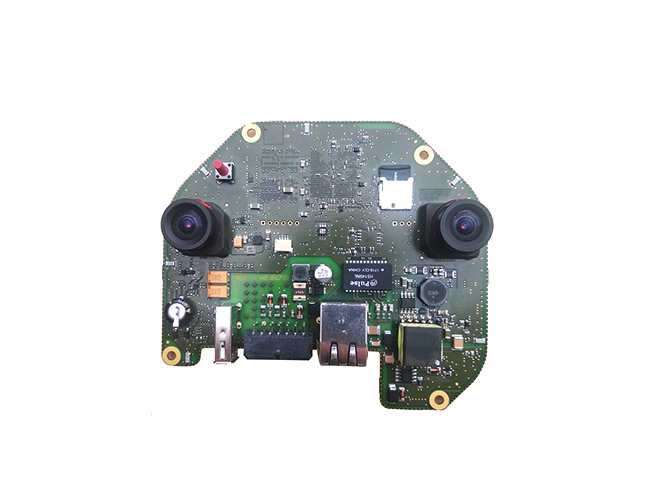

PCB circuit etching precision refers to the accuracy with which the conductive copper layers on a printed circuit board (PCB) are patterned during the etching process, directly impacting the board’s functionality, signal integrity, and ability to accommodate miniaturized components. Achieving high precision is critical in modern PCBs, where trace widths and spacing can be as small as 0.05mm (50μm) in advanced applications such as smartphones, medical devices, and aerospace electronics.

The etching process involves selectively removing unwanted copper from the PCB substrate, leaving behind the desired circuit pattern. Precision is influenced by several factors, including the quality of the photoresist, exposure accuracy, etching chemistry, and process parameters. Photoresist materials must uniformly adhere to the copper surface and resist degradation during etching; any flaws, such as pinholes or uneven thickness, can lead to undercutting (excessive etching beneath the resist) or over-etching, both of which reduce precision. Advanced photoresists, such as dry-film or liquid photoresists with high resolution, are essential for fine-pitch circuits, as they can accurately replicate the mask pattern even at small scales.

Exposure systems play a key role in transferring the circuit design from the photomask to the photoresist. High-resolution lithography equipment, such as laser direct imaging (LDI) systems, offer superior precision compared to traditional UV exposure units. LDI systems use lasers to directly pattern the photoresist, eliminating the need for a physical mask and reducing errors caused by mask alignment or distortion. This results in more accurate trace definitions, with edge placement errors minimized to within a few microns.

Etching chemistry and process control are equally important. Acidic etchants (e.g., ferric chloride, ammonium persulfate) or alkaline etchants (e.g., cupric chloride) must be maintained at optimal concentrations, temperatures, and spray pressures to ensure uniform etching. Over-etching can narrow traces beyond their designed width, while under-etching leaves residual copper, causing short circuits. Automated etching systems with real-time monitoring and feedback loops adjust parameters dynamically, ensuring consistent results across the entire PCB panel.

The substrate material also affects precision. Thin copper foils (e.g., 12μm or 18μm) are easier to etch with high precision than thicker foils, as they require shorter etching times and reduce the risk of undercutting. Additionally, the flatness of the PCB substrate is critical; warped or uneven substrates can cause uneven etching, as the distance between the spray nozzles and the copper surface varies.

High etching precision enables the fabrication of PCBs with dense circuit layouts, supporting higher component densities and faster signal transmission. It also reduces the risk of electrical failures, such as short circuits or open circuits, which are more common in poorly etched boards. For high-frequency applications, precise trace widths and spacing minimize signal loss and crosstalk, ensuring reliable performance.

 PCB circuit etching precision is a multifaceted parameter dependent on material quality, equipment accuracy, and process control. Achieving high precision is essential for meeting the demands of modern electronics, where miniaturization and performance are paramount.
