  High-Speed Serial Interface Design of PCB Multilayer Boards

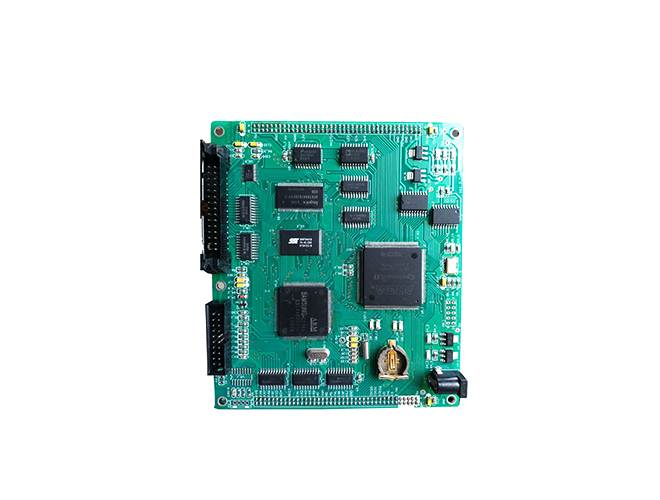

  The design of high-speed serial interfaces on PCB multilayer boards is a critical aspect in modern electronics, especially with the increasing demand for high data transfer rates in applications such as data centers, telecommunications, and high-performance computing. As data rates soar into the gigabits per second range, the design must address challenges like signal integrity, crosstalk, and impedance matching.

  Signal integrity is paramount in high-speed serial interface design. To maintain the quality of the transmitted signal, designers need to carefully manage the trace length, routing topology, and layer stack-up of the PCB multilayer board. For example, differential pairs are commonly used for high-speed serial signals. These pairs consist of two closely routed traces that carry complementary signals. By keeping the traces of a differential pair as close as possible and of equal length, any external noise or interference affects both traces equally, and thus can be canceled out at the receiver end. The layer stack-up also plays a crucial role. Using an appropriate number of layers and dielectric materials with low loss tangent helps in reducing signal attenuation over long distances.

  Impedance matching is another key factor. High-speed serial interfaces require a specific impedance (usually 100 ohms for differential pairs) to ensure that the signal is transmitted without reflections. The impedance of the traces on the PCB is determined by factors such as the trace width, the distance between the traces, and the dielectric constant of the substrate material. Designers use specialized software tools to calculate and optimize the trace dimensions to achieve the desired impedance. Additionally, proper termination resistors need to be placed at the end of the traces to absorb any reflected signals and prevent signal degradation.

  Crosstalk, which occurs when signals on adjacent traces interfere with each other, must be minimized. This can be achieved through techniques such as increasing the spacing between high-speed traces, using ground traces as shields between signal traces, and avoiding parallel routing of traces over long distances. In multilayer boards, different signal layers can be separated by ground or power planes to provide additional isolation.

  Moreover, the design of connectors and vias also impacts the performance of high-speed serial interfaces. Connectors should have low insertion loss and good impedance matching characteristics. Vias, which are used to connect traces on different layers, can introduce discontinuities in the signal path. To mitigate this, designers can use techniques like blind or buried vias, which have a shorter length and cause less signal degradation compared to through-hole vias.
