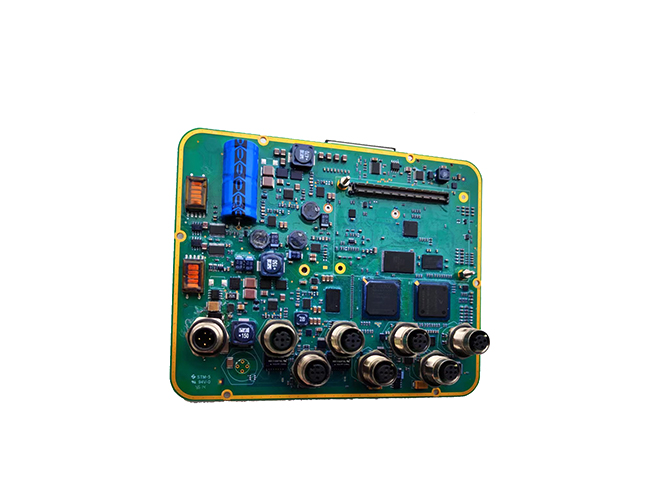

High - frequency and high - speed boards are specialized printed circuit boards designed to meet the stringent requirements of modern high - frequency and high - speed electronic systems. As technology advances, electronic devices are operating at increasingly higher frequencies and data transfer speeds, such as in 5G communication, radar systems, high - performance computing, and high - speed digital interfaces. These applications demand PCBs with superior electrical performance, signal integrity, and low - loss characteristics.

　　In high - frequency applications, the wavelength of the electromagnetic waves becomes shorter, and the parasitic effects of the PCB, such as capacitance, inductance, and resistance, have a more significant impact on signal transmission. High - frequency boards are designed with materials that have low dielectric constants (Dk) and low dissipation factors (Df). Low Dk values reduce signal propagation delay, while low Df values minimize signal loss due to dielectric absorption. Common materials used for high - frequency boards include polytetrafluoroethylene (PTFE) - based laminates, Rogers RT/duroid materials, and other specialized high - frequency laminates.

　　For high - speed digital applications, maintaining signal integrity is crucial. As data transfer rates increase, issues such as signal reflections, crosstalk, and attenuation become more pronounced. High - speed boards employ advanced design techniques, such as impedance matching, controlled - impedance routing, and differential signaling. Impedance matching ensures that the impedance of the PCB traces matches the impedance of the connected components, reducing signal reflections. Controlled - impedance routing involves precisely designing the width, length, and spacing of the traces to maintain a consistent impedance along the signal path. Differential signaling uses pairs of signals that are complementary to each other, which helps to reduce electromagnetic interference and improve the noise immunity of the signal.

　　In addition to material selection and design techniques, the manufacturing process of high - frequency and high - speed boards also requires high precision. Tighter tolerances are needed for trace widths, hole sizes, and layer - to - layer alignment to ensure accurate impedance control and signal performance. Advanced manufacturing processes, such as laser drilling for micro - vias, high - resolution imaging for fine - line traces, and advanced plating techniques for reliable electrical connections, are often employed.

　　Furthermore, high - frequency and high - speed boards may also require special testing and verification methods. Network analyzers are used to measure the electrical characteristics of the board, such as insertion loss, return loss, and impedance. Time - domain reflectometry (TDR) is another common testing method for evaluating signal integrity in high - speed digital circuits. These comprehensive testing procedures ensure that the high - frequency and high - speed boards meet the strict performance requirements of modern electronic systems, enabling the reliable operation of advanced electronic devices in various fields.
