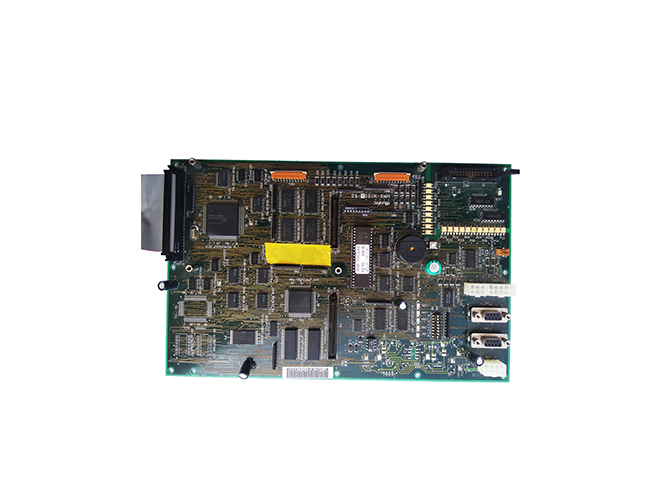

Blind via PCBs represent a specialized category of printed circuit boards that utilize blind vias, which are vias that connect the outer layer of the PCB to one or more inner layers but do not penetrate through the entire board. This unique structure endows blind via PCBs with distinct advantages in terms of circuit density, signal integrity, and mechanical strength, making them highly sought - after in a wide range of advanced electronic applications.

The manufacturing process of blind via PCBs is intricate and demands precise control. Typically, it starts with the fabrication of the core PCB layers, which are processed with the necessary circuitry. Subsequently, the blind vias are created. Laser drilling is a commonly adopted technique for forming blind vias due to its high precision. Lasers can accurately ablate the dielectric material to the desired depth, creating holes that connect the outer layer to the targeted inner layer. After drilling, a metallization process, usually electroless copper plating followed by electroplating, is carried out to deposit a conductive copper layer on the walls of the blind vias, establishing reliable electrical connections. Then, additional dielectric layers and copper layers may be added through a build - up process to further expand the circuit's complexity and functionality.

One of the primary advantages of blind via PCBs is the enhanced component density they facilitate. Since blind vias do not extend through the entire board, they occupy less vertical space compared to through - hole vias. This allows for a greater number of components to be placed on both the top and bottom surfaces of the PCB, as well as within the inner layers, optimizing the use of the available board area. This is especially crucial in applications where miniaturization is a key requirement, such as in portable electronics and wearable devices.

In terms of signal integrity, blind via PCBs offer significant benefits. The shorter electrical paths of blind vias reduce signal delay, attenuation, and crosstalk, making them suitable for high - speed signal transmission. By minimizing the exposure of vias to the external environment, the risk of electromagnetic interference affecting the signals is also decreased. Moreover, the mechanical strength of blind via PCBs is often improved, as the absence of through - holes reduces the potential for mechanical stress concentrations and board warping.

Blind via PCBs find extensive applications across multiple industries. In the consumer electronics sector, they are used in the production of smartphones, tablets, and laptops, enabling the integration of a large number of components in a compact form factor while ensuring high - speed data transfer. In the aerospace and defense industries, where reliability and performance are paramount, blind via PCBs are employed in avionics systems, radar equipment, and military communication devices. Their ability to enhance circuit density and signal integrity makes them an ideal choice for these demanding applications. Overall, blind via PCBs play a vital role in enabling the development of more advanced, compact, and reliable electronic products.
