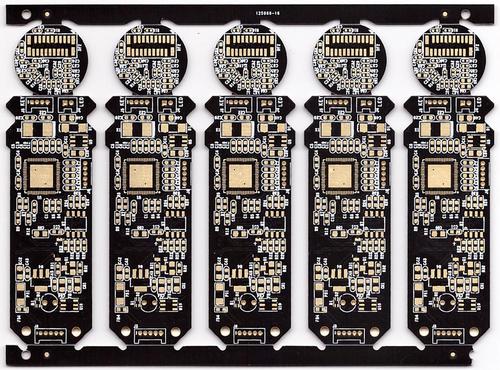

CEM - 1 (Composite Epoxy Material - 1) is a widely used material in printed circuit board manufacturing, known for its cost - effectiveness, good electrical properties, and suitable mechanical strength. CEM - 1 PCBs are constructed with a combination of paper and glass fiber reinforcements within an epoxy resin matrix, which gives them unique characteristics that make them suitable for a variety of applications, particularly in consumer electronics and low - to - medium - end electrical products.

The structure of CEM - 1 materials consists of a core layer made of impregnated kraft paper, which provides a cost - efficient base. This core is then laminated on both sides with a layer of woven glass fabric that is saturated with epoxy resin. The paper core reduces the overall cost of the material compared to fully glass - fiber - reinforced PCBs, while the outer glass - epoxy layers enhance the mechanical strength, electrical insulation, and dimensional stability of the board. The combination results in a material that offers a good balance between performance and cost, making it a popular choice for mass - produced consumer products such as calculators, remote controls, and simple electronic toys.

In terms of electrical properties, CEM - 1 materials exhibit acceptable insulation resistance and dielectric constant, which are suitable for most low - frequency and moderate - voltage applications. They can effectively isolate electrical components and prevent short circuits, ensuring the proper functioning of the electronic devices. However, due to the presence of the paper core, CEM - 1 PCBs have limitations in terms of heat resistance and moisture resistance compared to some other PCB materials. The paper is more prone to absorbing moisture, which can lead to degradation of the electrical and mechanical properties over time, especially in humid environments. Additionally, the relatively low glass transition temperature of CEM - 1 materials means they may not be suitable for applications involving high - temperature processes or continuous high - temperature operation.

The manufacturing process of CEM - 1 PCBs is relatively straightforward, which also contributes to their cost - effectiveness. Standard lamination and drilling techniques are used to form the board, and the material can be easily processed with common PCB manufacturing equipment. Surface finishing options such as tin - lead plating or electroless nickel immersion gold (ENIG) can be applied to enhance the board's solderability and protect the copper traces. While CEM - 1 materials may not offer the highest performance in all aspects, their combination of affordability, basic electrical functionality, and ease of manufacturing has made them a staple in many consumer - and general - purpose electronics applications where high - end performance is not a primary requirement.
